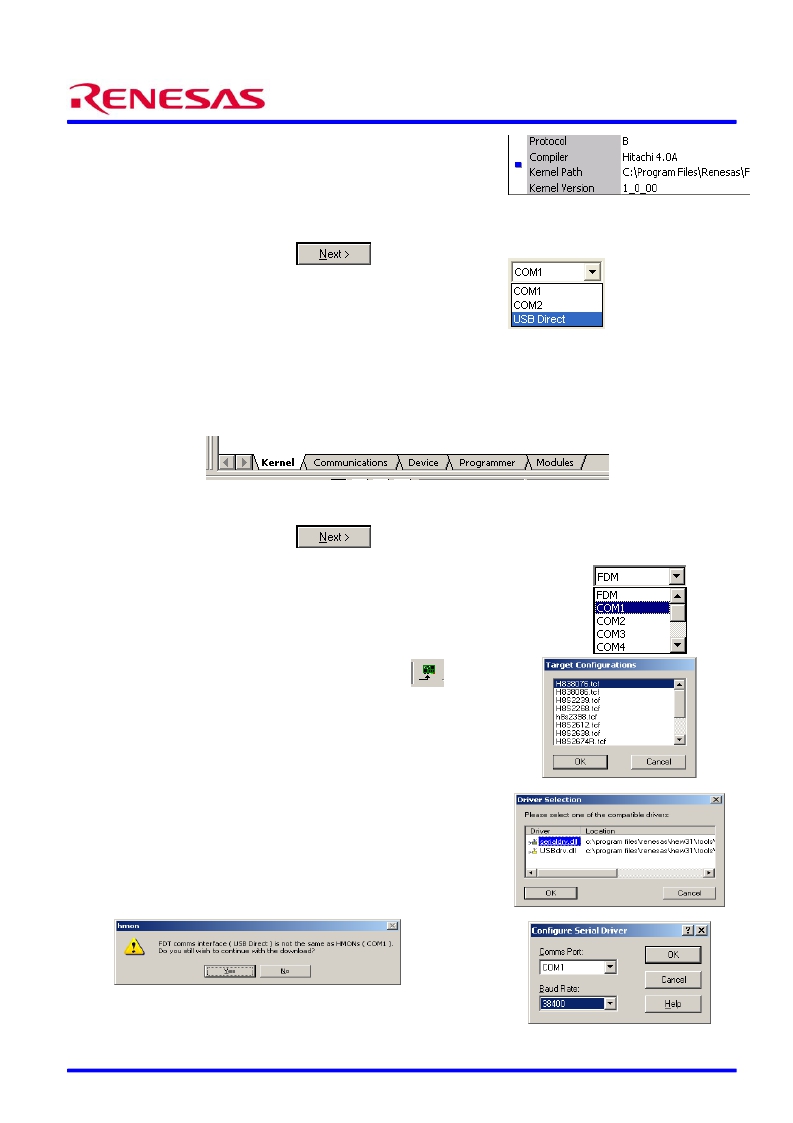

3DK2218U Quickstart Guide
3
a.
b.
Select your device from the drop down menu.
Click on the Kernels for your 3DK. These are denoted by a
.3DK after the version. If these are not listed, use the
“Browse” button to locate \Kernels\ProtB directory in FDT in
your program files directory. Navigate to your device and
then browse down to the device specific FDT configuration
file.
c.
Click the “ Next ” button.
.
d.
e.
f.
g.
h.
i.
j.
Select USB Direct to connect to your 3DK, and click “ Next ”.
(This is because the BOOT Mode download is done using
USB connection.)
The CPU Crystal Frequency of the 3DK should be preset to
the default value, click “ Next ” to accept the settings.
Configure the settings to User Mode. Click “ Next ”.
Configure the settings to Automatic Protection and Advanced
Messaging.
Click “ Finish ” to accept the settings.
FDT is now configured for use with the 3DK. By clicking on the wand, you may open the Flash Properties
window. The FDT settings may be inspected using the category Tabs.
Click on the Kernel tab, verify that the path is set to the Kernels for your 3DK and the device operating
frequency is set to 24MHz. The kernels are denoted by a .3DK after the version. If these parameters require
changing, double-click the path in the window to open the wizard and select the Kernels for your 3DK
k.
Click the “ Next ” button.
.
l.
Enter the Frequency for the 3DK as 24 and click “ Finish ”
m. Select the Communications tab and verify that USB Direct is selected.
Should these settings require alteration, double-click the required parameter,
make the required change and click “ Finish ” to close the wizard.
n.
Click on the Device tab, and verify the device is set to H8S/2218UF. The
device selected is determined by the choice of kernels, previously selected.
FDT is now configured for use with the 3DK. Save the workspace.
7) Choose “ Connect ”, by clicking on the Connect button.
8) When prompted, select the target configuration file for the
H8S/2218U and click “ OK ”.
9) If prompted to select the communication driver for HMon, click on
“ serialdrv.dll ” and click “ OK ”.
Do not select USBDrv.dll. This driver is for use with the FDM
only. The FDM is not supported by 3DK2218U.
10) When prompted, select COM1, a Baud Rate of 38400 and click
“ OK ”.
11) HEW will attempt to connect to the embedded HMon. A
connection dialogue box will then appear because embedded
HMon is not yet programmed into the 3DK.
12) Select the “Download HMon using Boot Mode” radio button and
click “ OK ”.
13) While trying to download HMon using Boot mode, the following
dialog will appear:
Click "Yes" to continue with the download.
Renesas Technology Europe Ltd.
D005316_11_v01
